Apple II Rev 0 DIY Reproduction Kit - Full Accessory Set

Apple II Rev 0 DIY Reproduction Kit - complete build-ready set

This full accessory set is for builders who want the Apple II Rev 0 experience without spending months hunting rare chips, comparing old BOMs, and debugging unknown vintage parts. It includes the reproduction motherboard PCB, curated through-hole parts, tested vintage/used ICs where required, tested replacement/adaptor circuits, practical accessories, GitHub documentation, and seller support.

Why this kit lowers the build risk

• All critical vintage/used ICs included with the kit are tested before shipment.
• Complete BOM and curated components are included, so you do not need to chase scarce parts one by one.
• Tested replacement circuits and adapter boards are included where original Apple II parts are scarce, expensive, or unreliable.
• Detailed assembly notes and reference documents are available through the GitHub project documentation.
• Support is available if you have questions during assembly or first bring-up.

Configuration included in this Shopify listing

This is the complete Shopify full accessory configuration. It is different from the lower-priced base configuration on Tindie, where options are selected one by one. This Shopify listing is already configured with the DIY kit plus the practical accessories needed for a more complete build and test setup.

• Kit or Fully Assembled: Kit
• PS/2 Keyboard Adapter: Yes
• Switching Power Supply: Yes
• Floppy Disk Emulator: Yes
• VGA Adapter: Yes
• GamePad: Yes

Important: DIY kit, not the fully assembled board

This product is for builders. Soldering, assembly, inspection, and careful first power-on testing are required. If you want the lowest-risk path and do not want to solder the main board yourself, choose the separate fully assembled Apple II Rev 0 reproduction board listing.

What this kit is for

The Apple II Rev 0 reproduction kit is a replica project based on the original Apple II Rev 0 motherboard design. It is made for vintage computing collectors, retro hardware builders, educators, and hobbyists who want to experience early Apple II hardware in a practical, buildable form.

Because original Apple II parts are increasingly scarce, this kit uses a carefully selected combination of reproduction PCB work, compatible substitute circuits, tested vintage components, and modern support modules where appropriate.

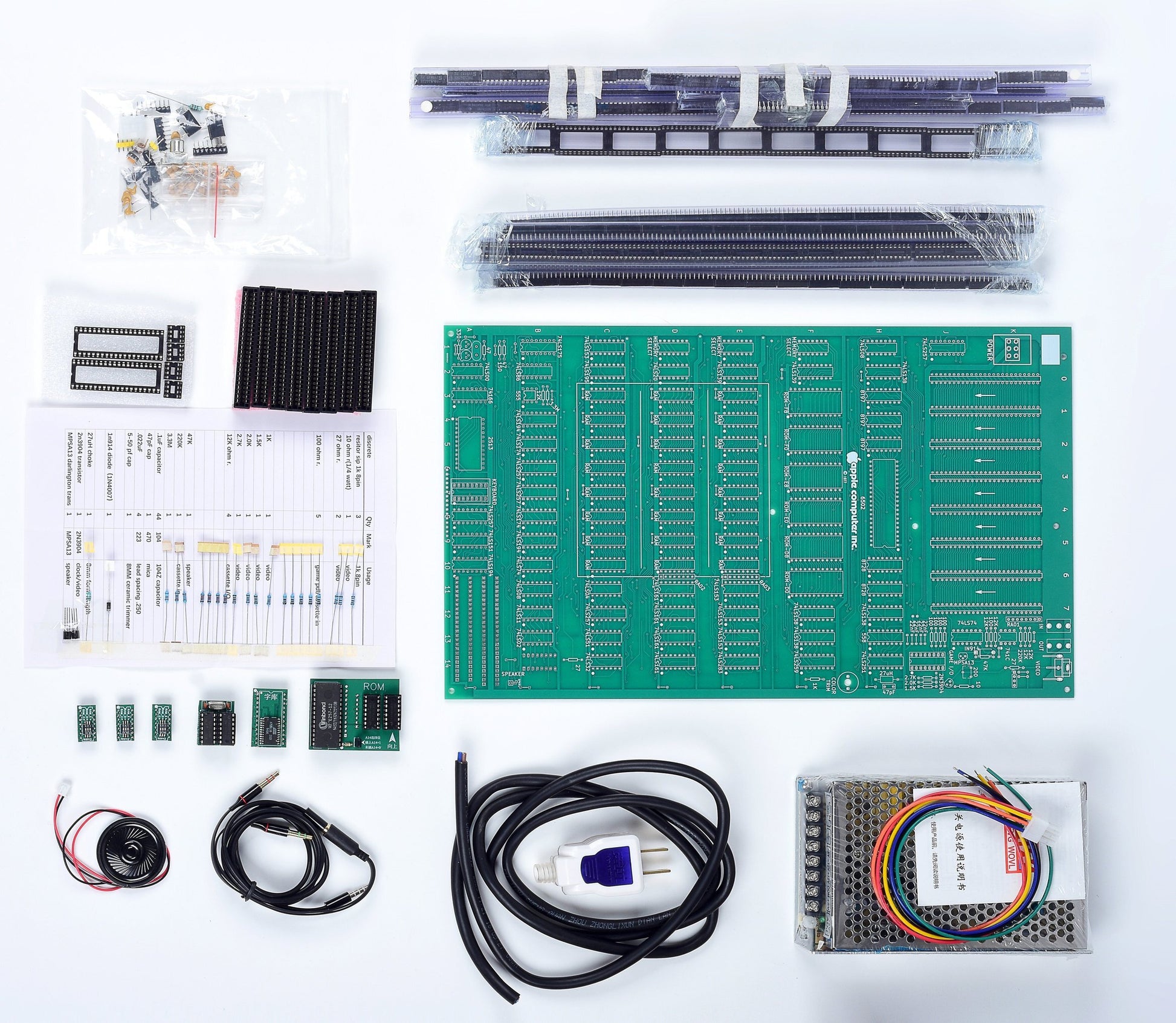

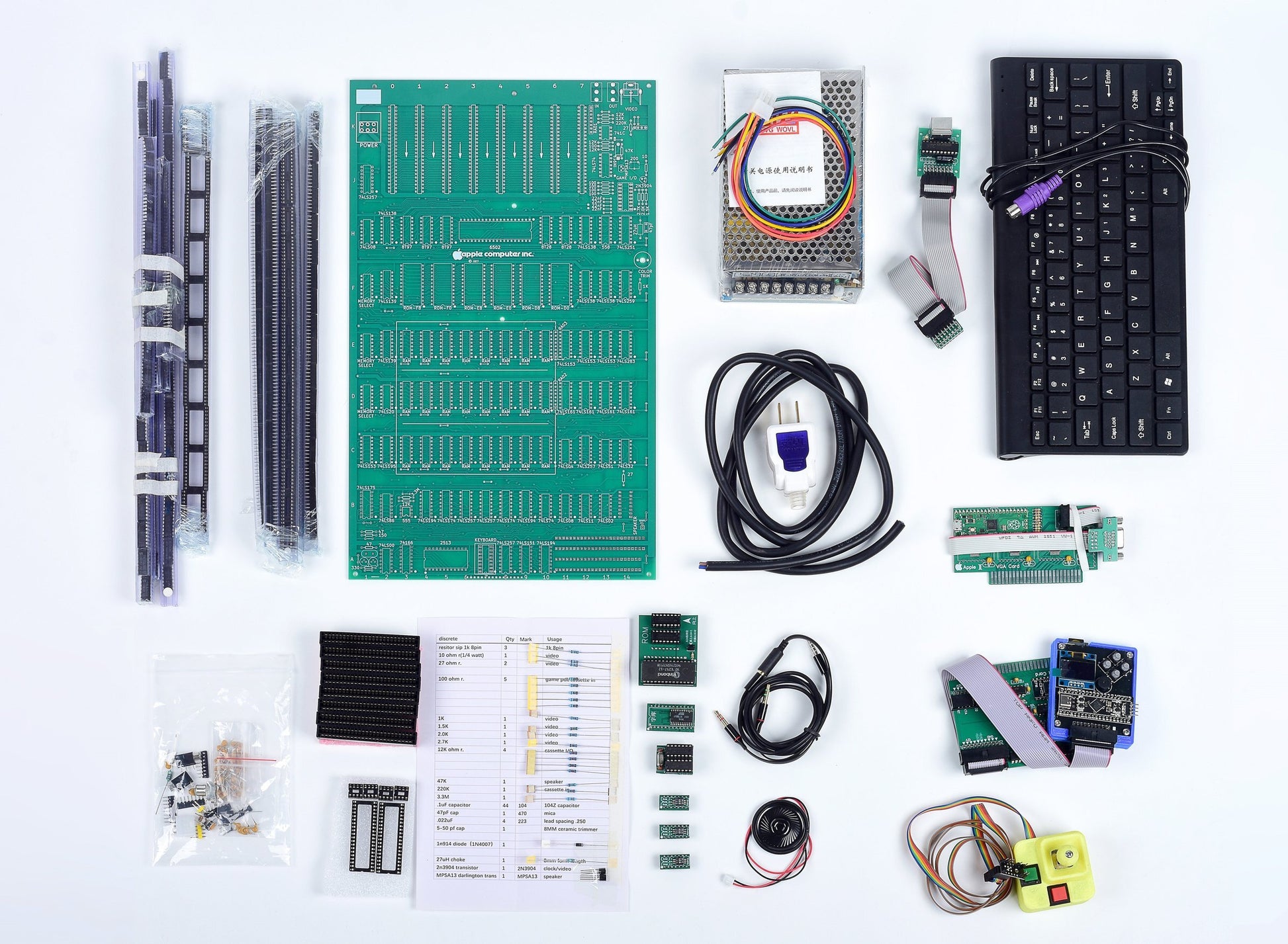

What is included

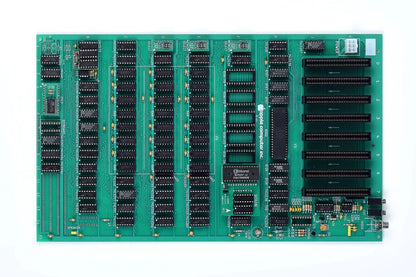

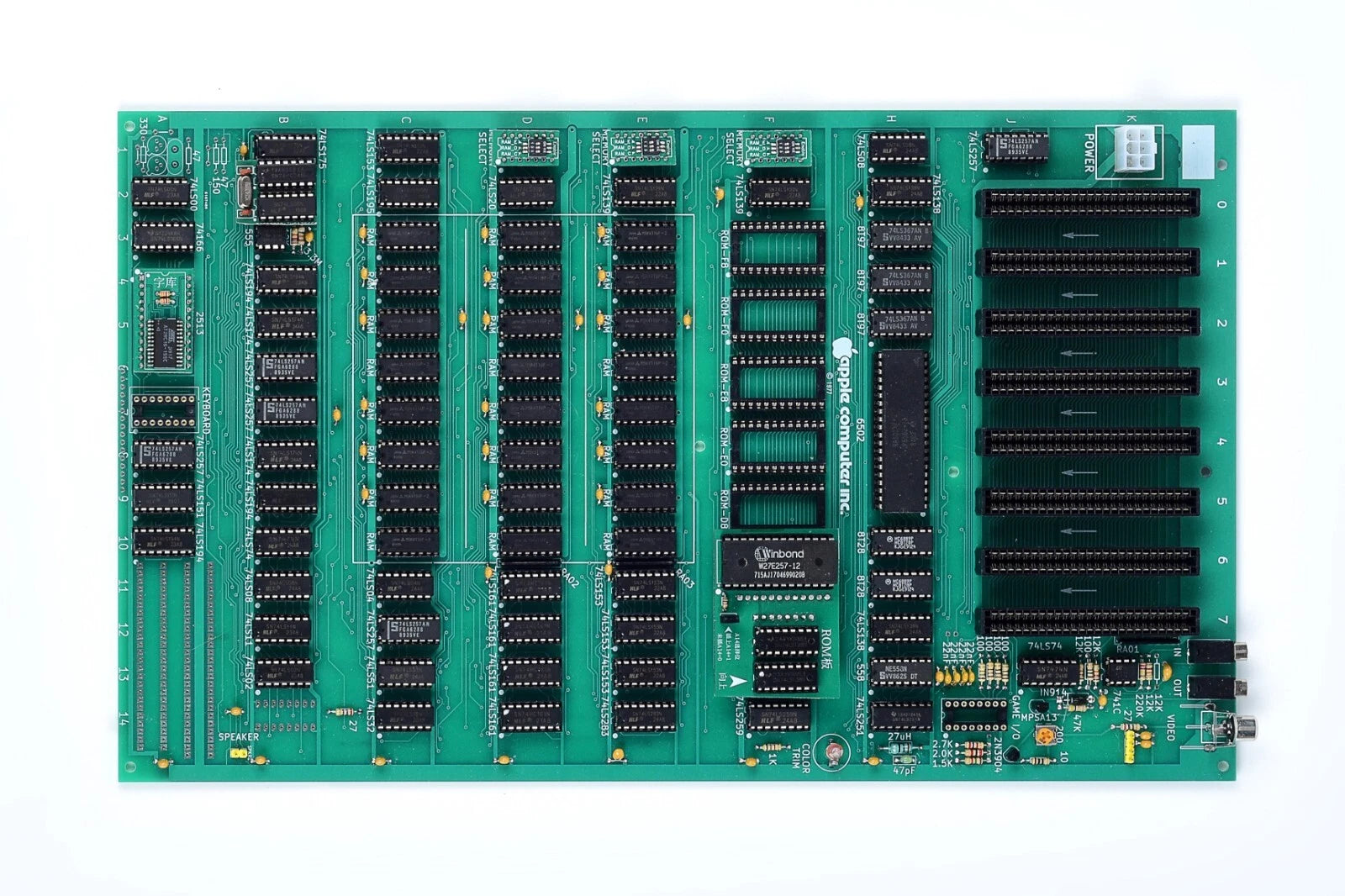

• Apple II Rev 0 reproduction motherboard PCB.
• Curated through-hole component kit for the Rev 0 build.
• Tested vintage or used ICs where original-type parts are required.
• PS/2 keyboard adapter for practical keyboard connection.
• Switching power supply for the build.

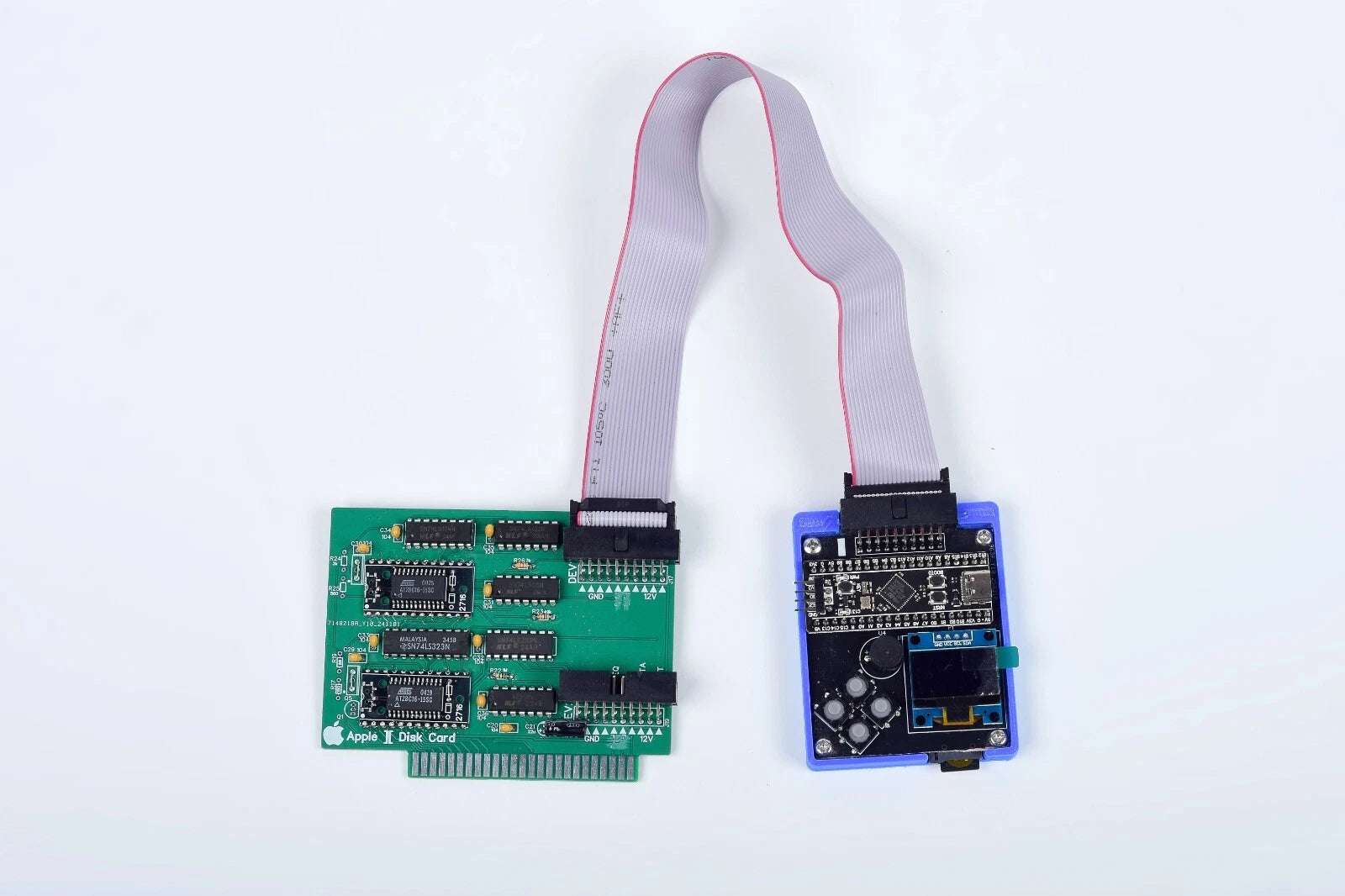

• Floppy disk emulator for booting software and test tools.

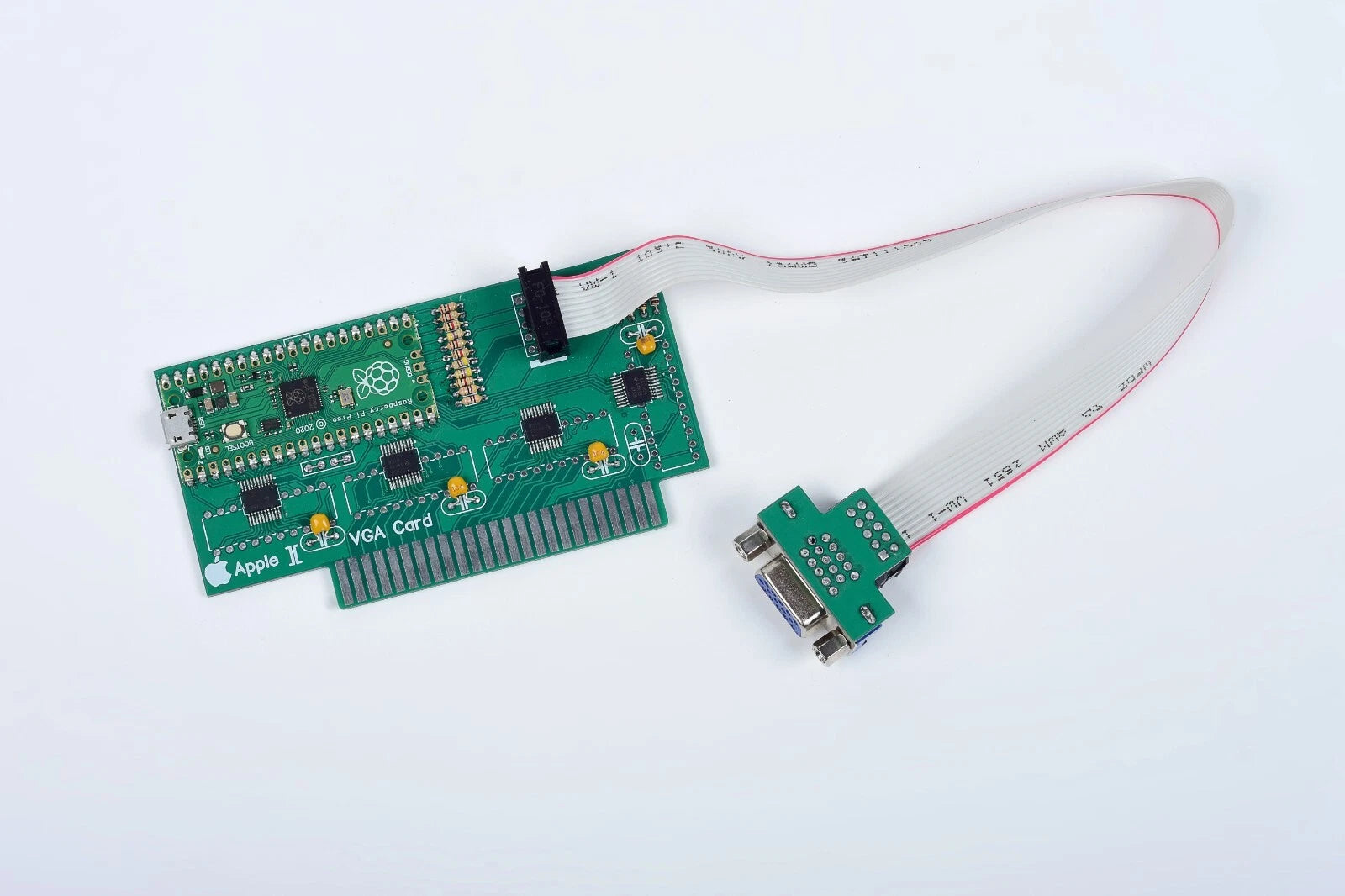

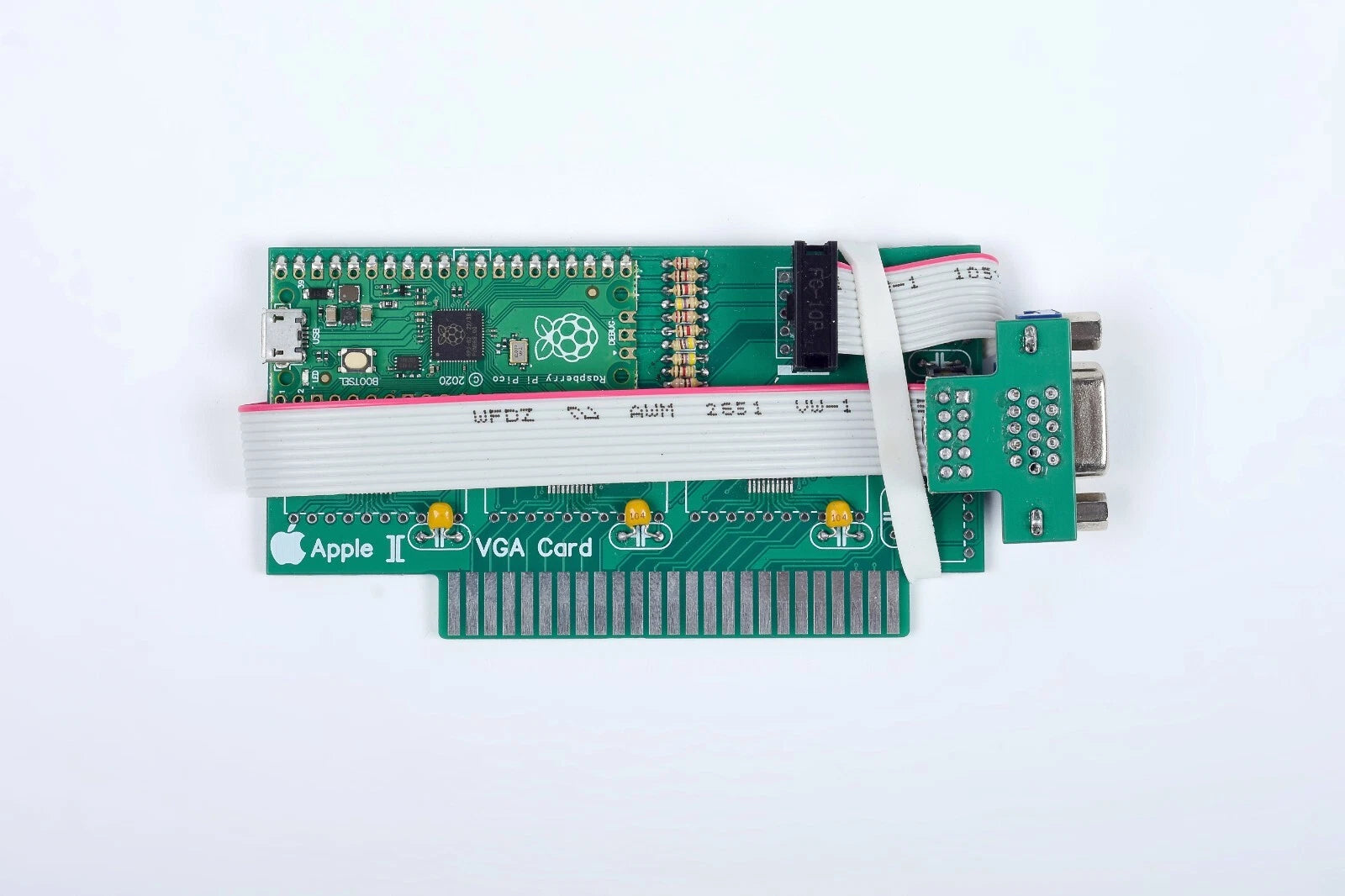

• VGA adapter for easier display output during use and testing.

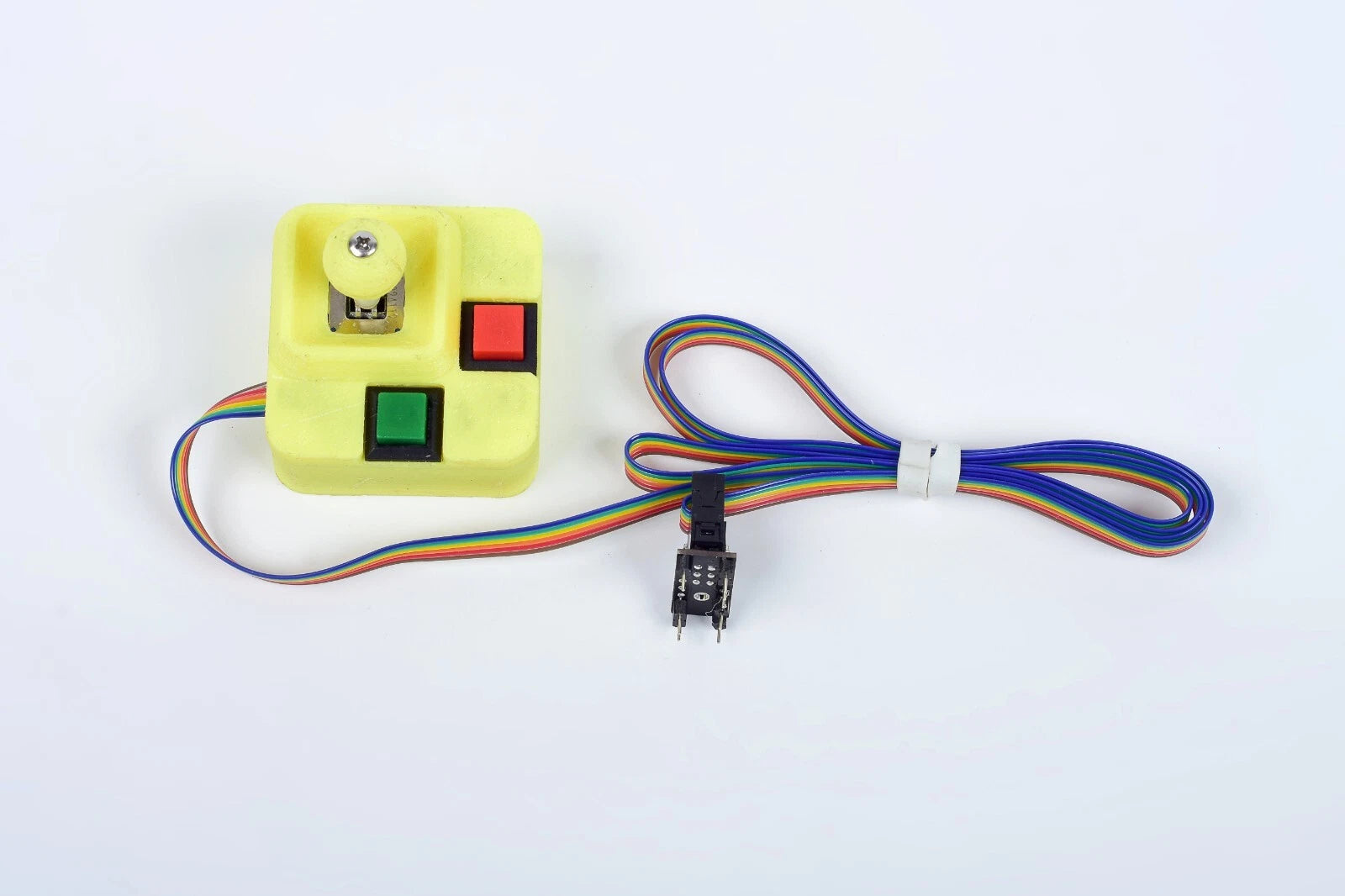

• GamePad accessory for supported retro software and games.
• Access to GitHub documentation and build reference material.

Design and compatibility notes

• The project aims to reproduce the Apple II Rev 0 motherboard as faithfully as practical while accounting for modern sourcing limits.
• Some chip substitutions are used, such as replacing original 8T97 parts with compatible 74LS367 logic where documented.
• Some ROM and memory-select functions use adapter or plug-in boards as described in the project documentation.
• The original oscillator area should not be populated in the same way as the historical board; clock generation is handled through the documented adapter approach.
• All main board assembly is through-hole, matching the style of the original era.

Assembly notes

• Before soldering, count and inspect the components. Passive parts may include extras; IC quantities are normally exact.
• Recommended soldering order: resistors, diodes, inductors, capacitors, transistors, IC sockets, connectors, and slot pins.
• Check IC socket direction carefully. Most ICs follow the same notch orientation when the board is upright.
• Before first power-on, recheck every IC orientation, adapter board, cable direction, and power connection.

Power safety note

Do not power on, power off, or reboot the motherboard by plugging or unplugging the DC output connector of the power adapter. Doing so can create voltage spikes that may damage RAM chips and other components.

Use the AC side of the power supply for power control, such as a switched wall outlet or power strip. Always confirm power wiring and voltage before connecting the board.

Keyboard and boot behavior

• The PS/2 keyboard adapter cable must be connected in the correct direction. Reversed wiring can damage hardware.
• When a floppy disk emulator or controller is installed, the system can boot from the virtual floppy setup.
• Without the floppy controller, the onboard BASIC boot procedure may require the documented keyboard command.

Documentation and references

• GitHub project documentation and build notes
• Tindie product page with selectable configuration options
• Apple II Rev 0 assembly reference
• Historical Apple II Rev 0 reference
