555 & 741 SMD Kit

What is it?

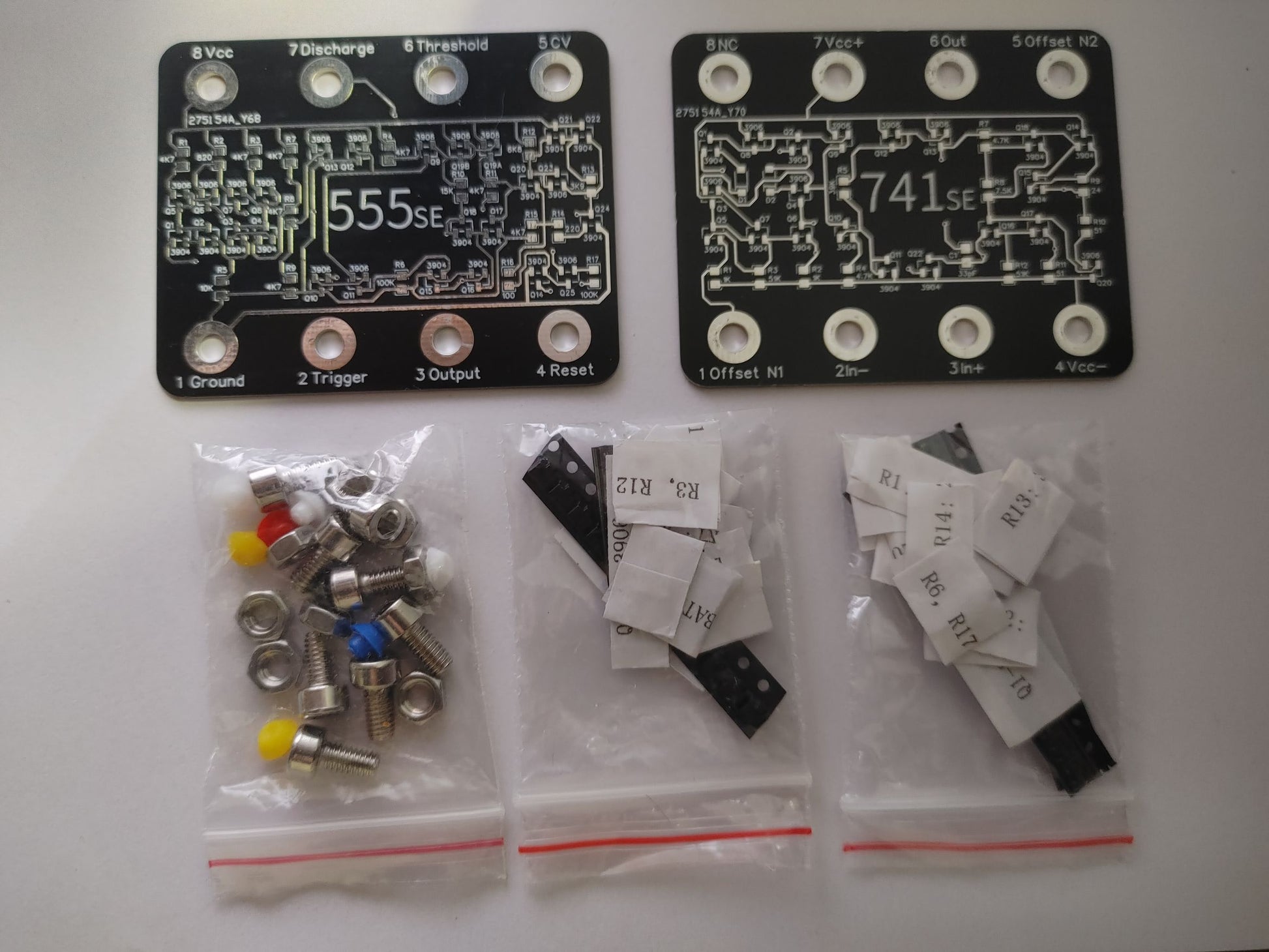

The "555SE" Discrete 555 timer is a surface-mount soldering kit that lets you build a faithful and functional transistor-scale replica of the NE555 timer integrated circuit, one of the mo…

What is it?

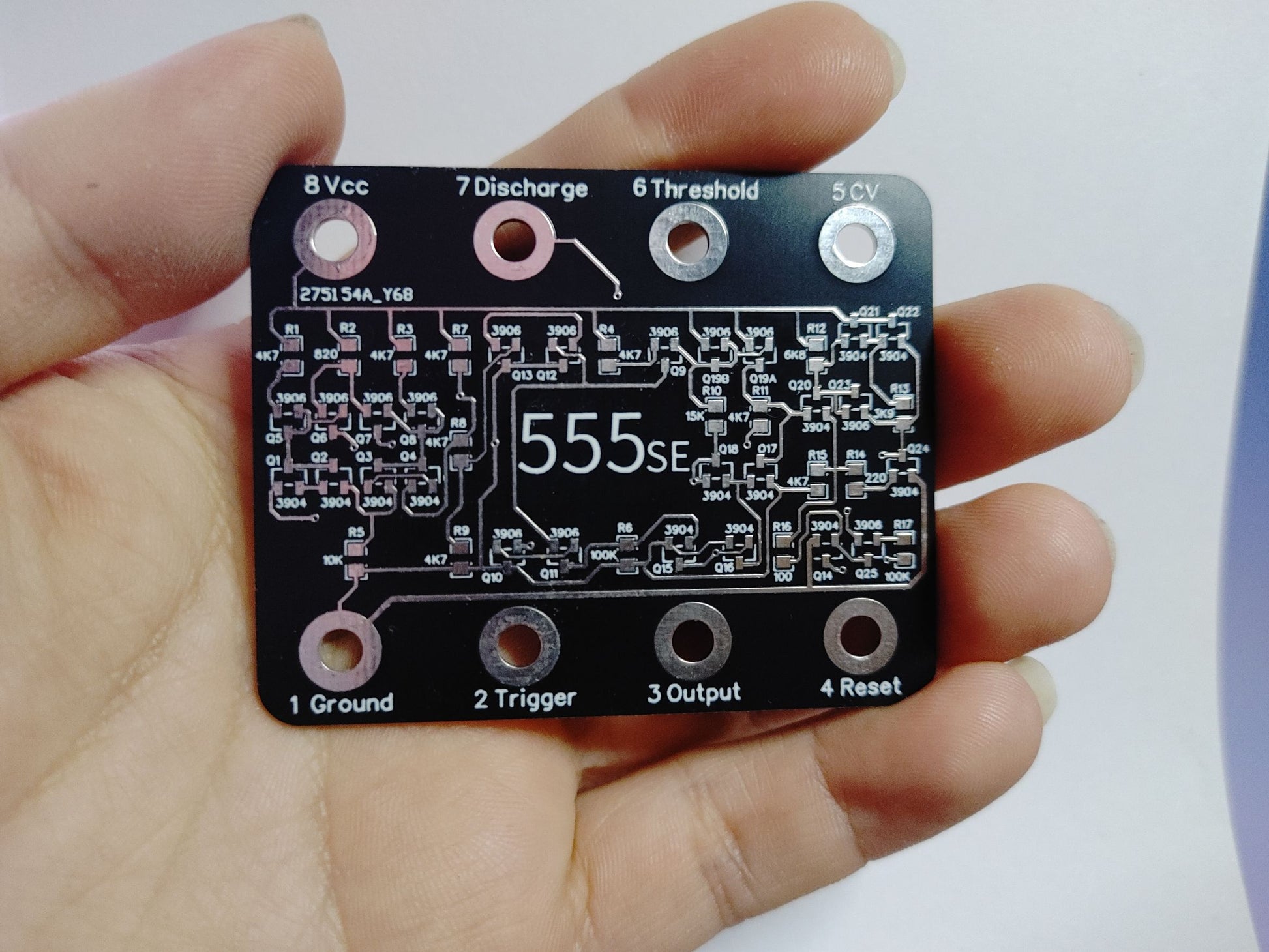

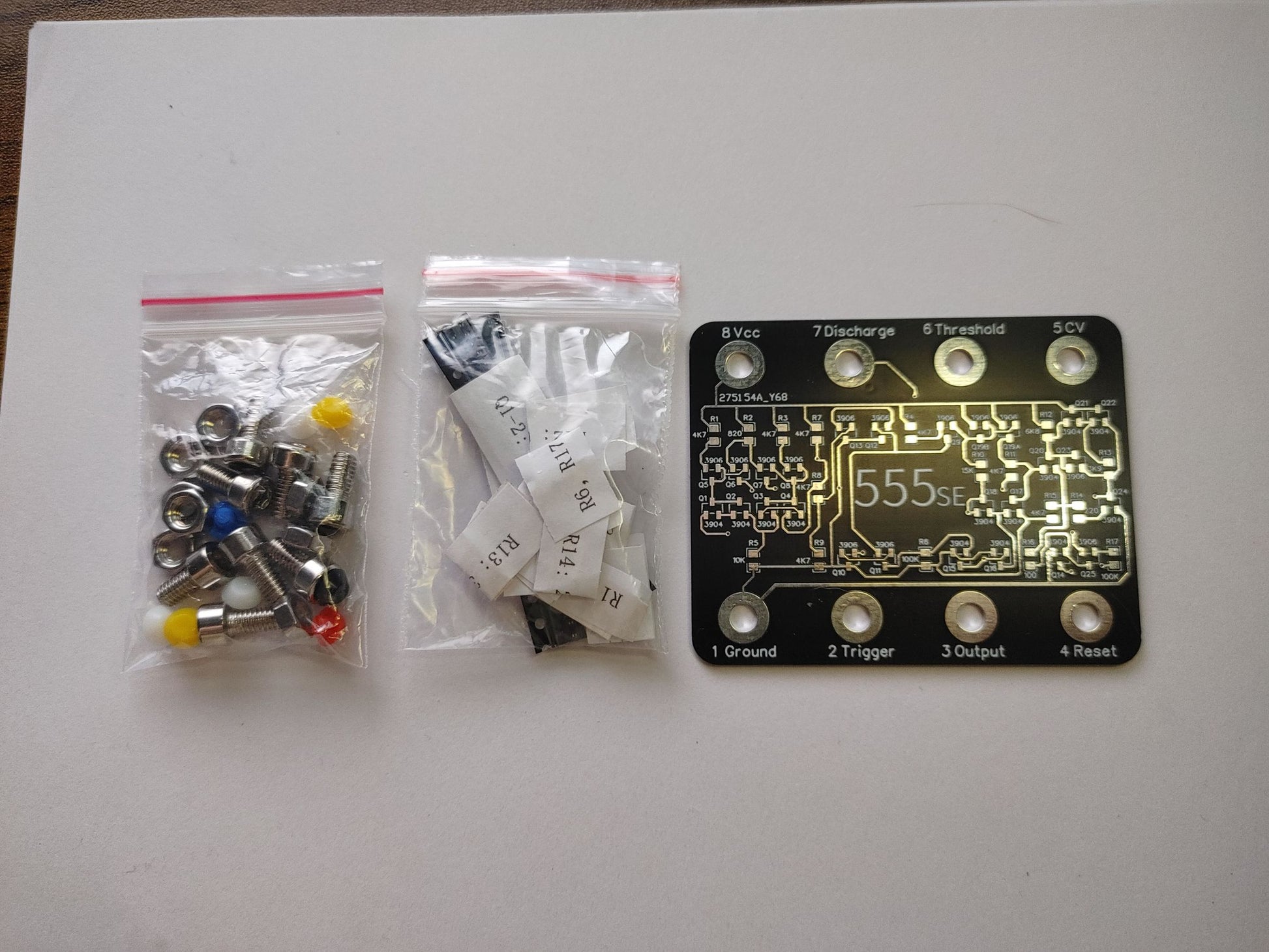

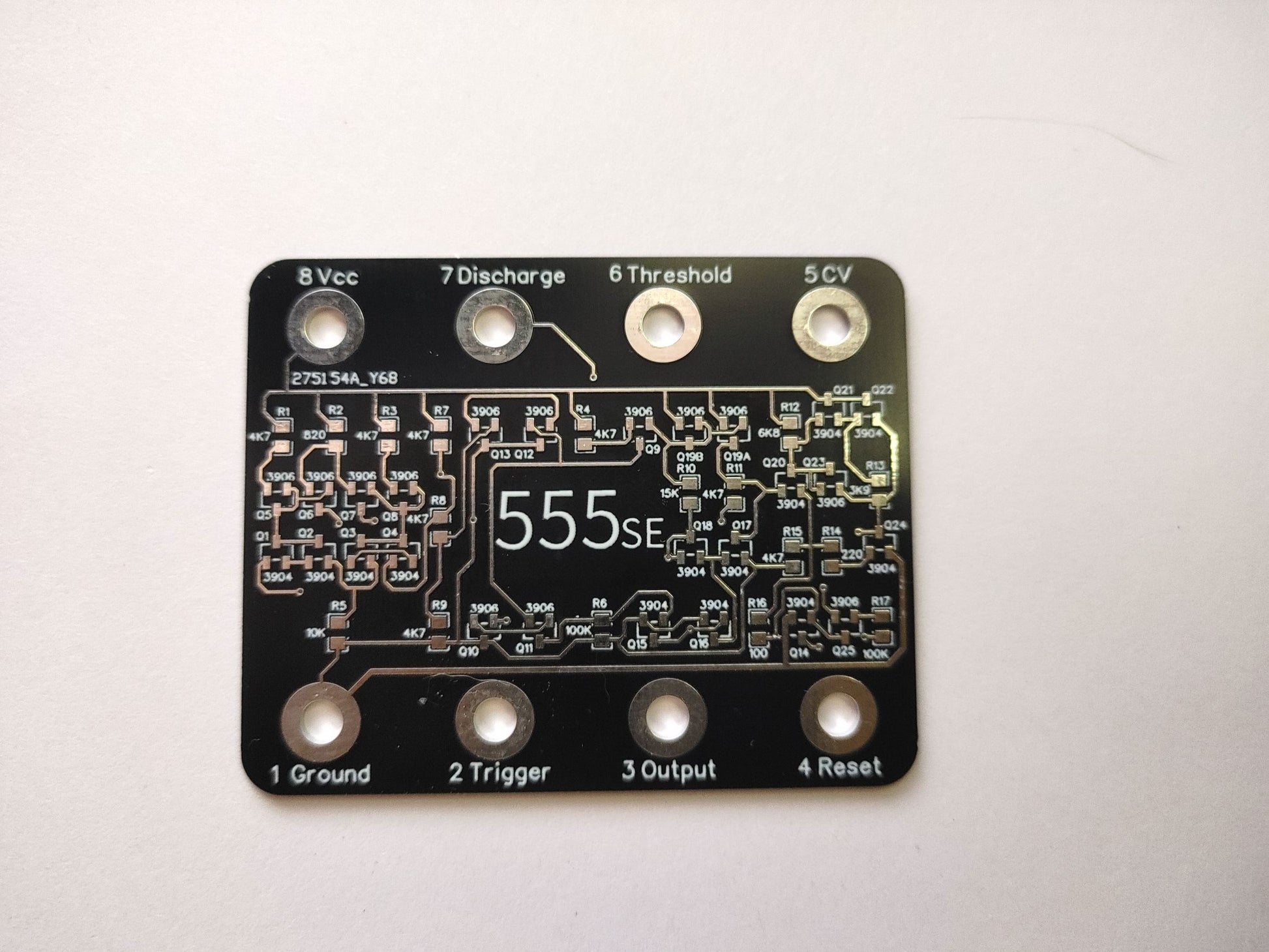

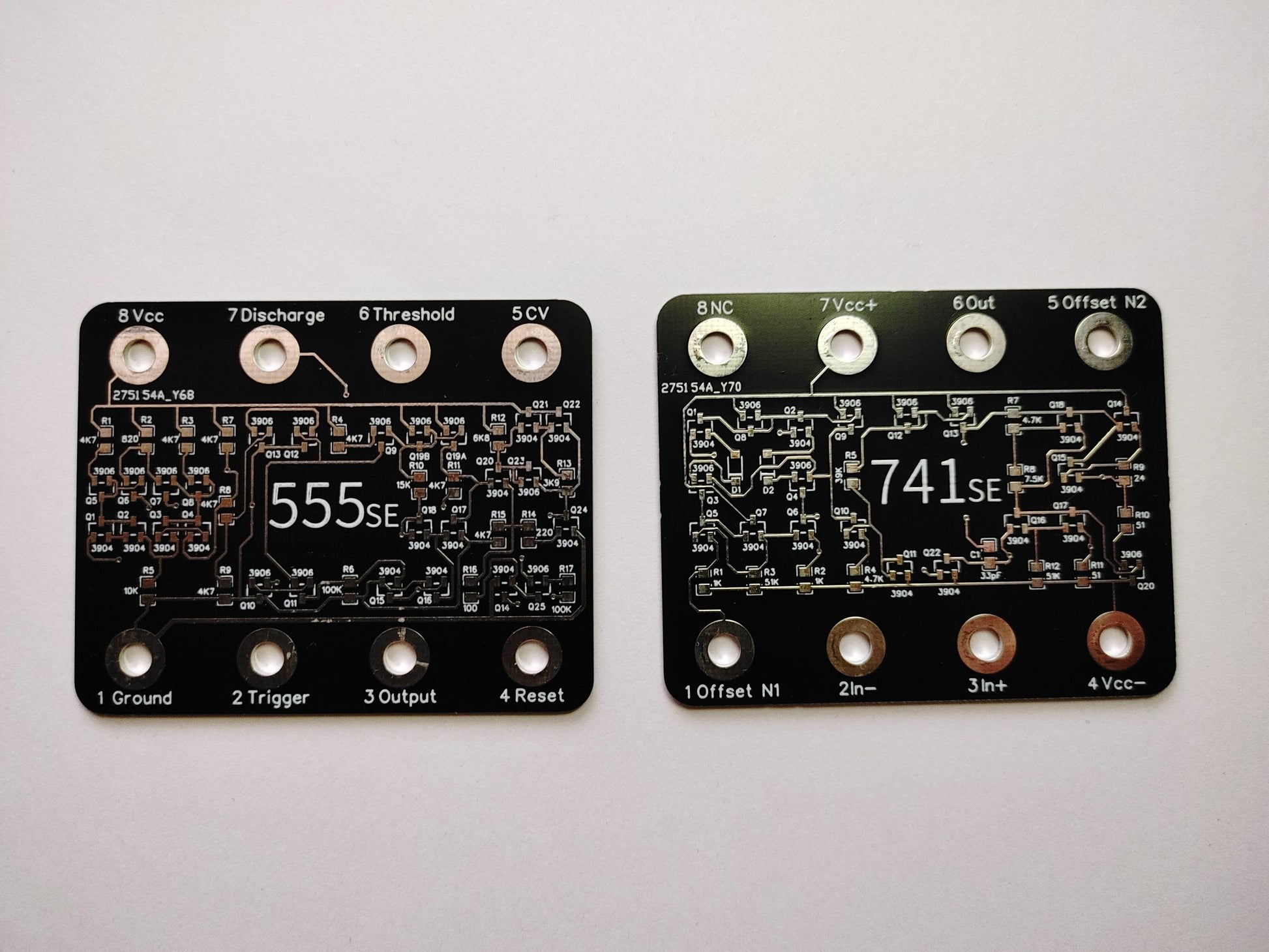

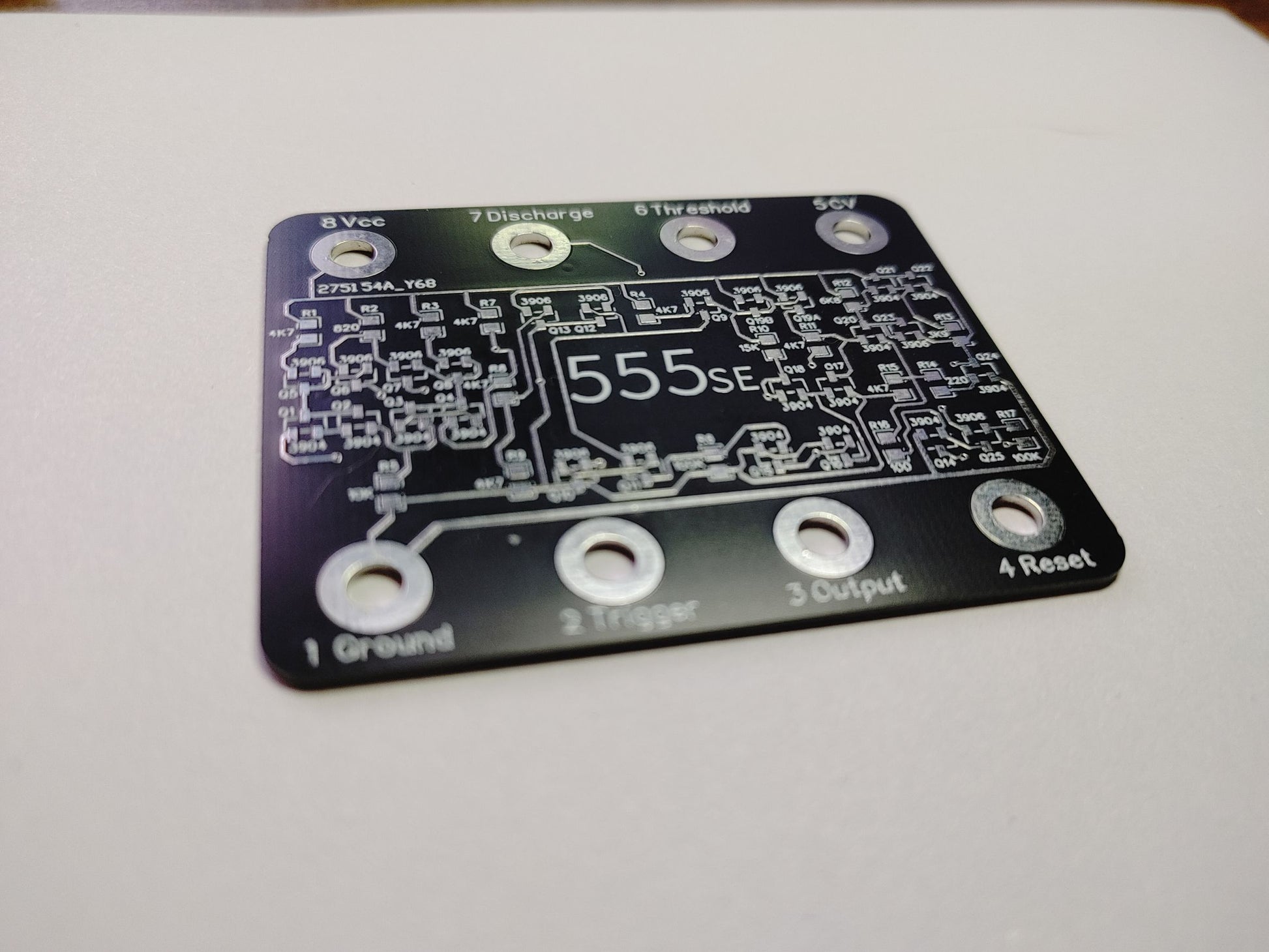

The "555SE" Discrete 555 timer is a surface-mount soldering kit that lets you build a faithful and functional transistor-scale replica of the NE555 timer integrated circuit, one of the most classic, popular, and all-around useful chips of all time.

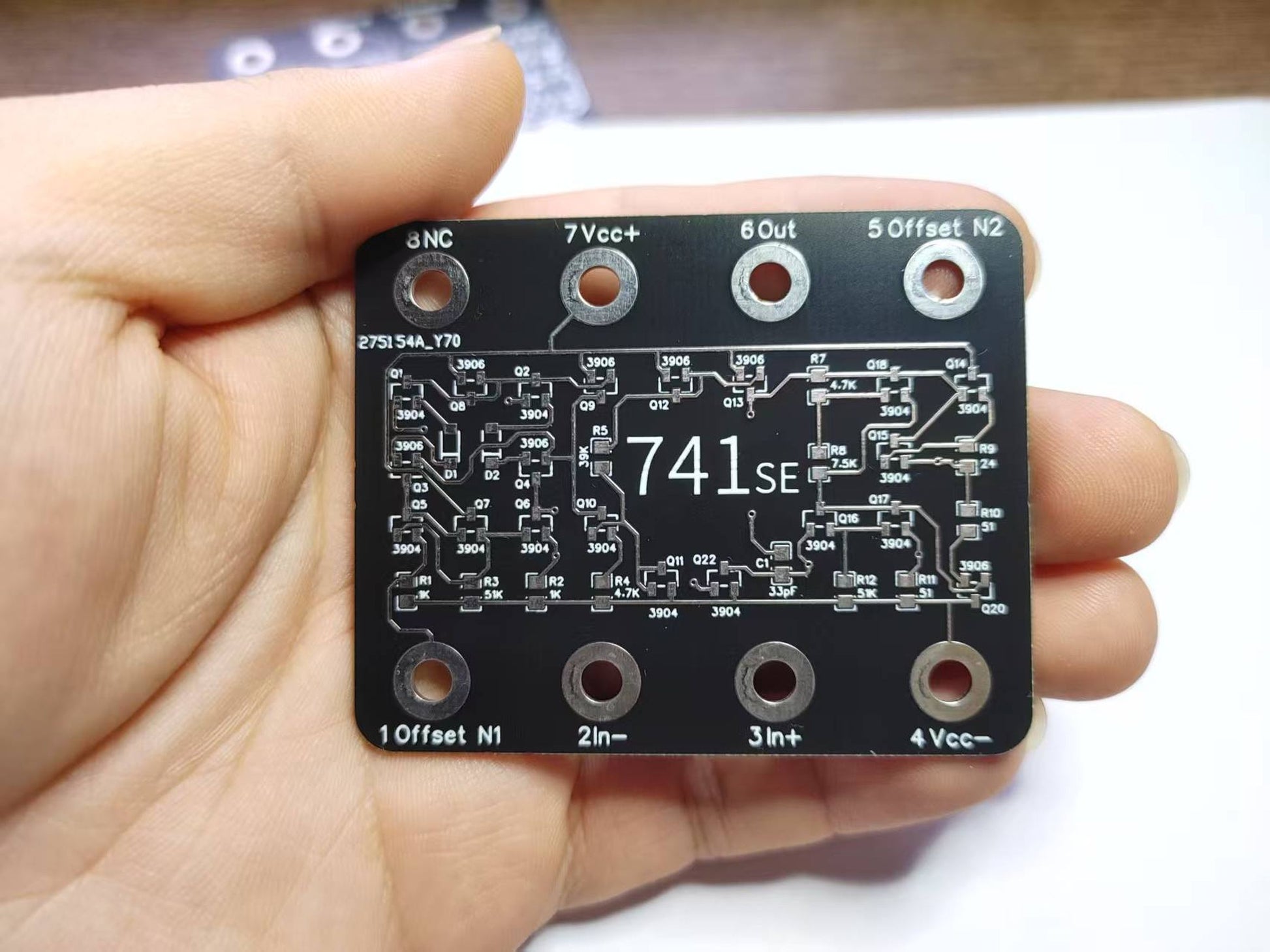

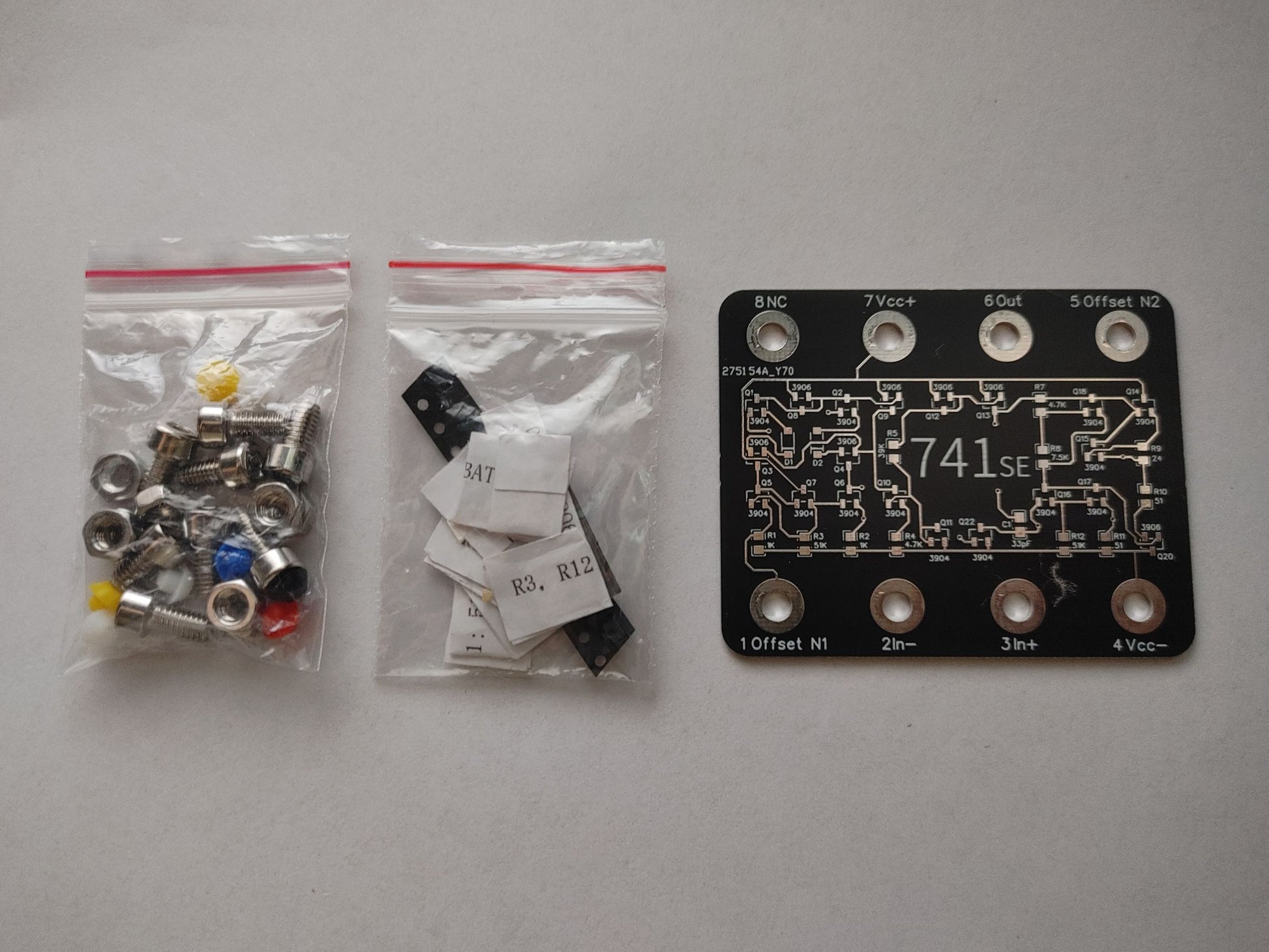

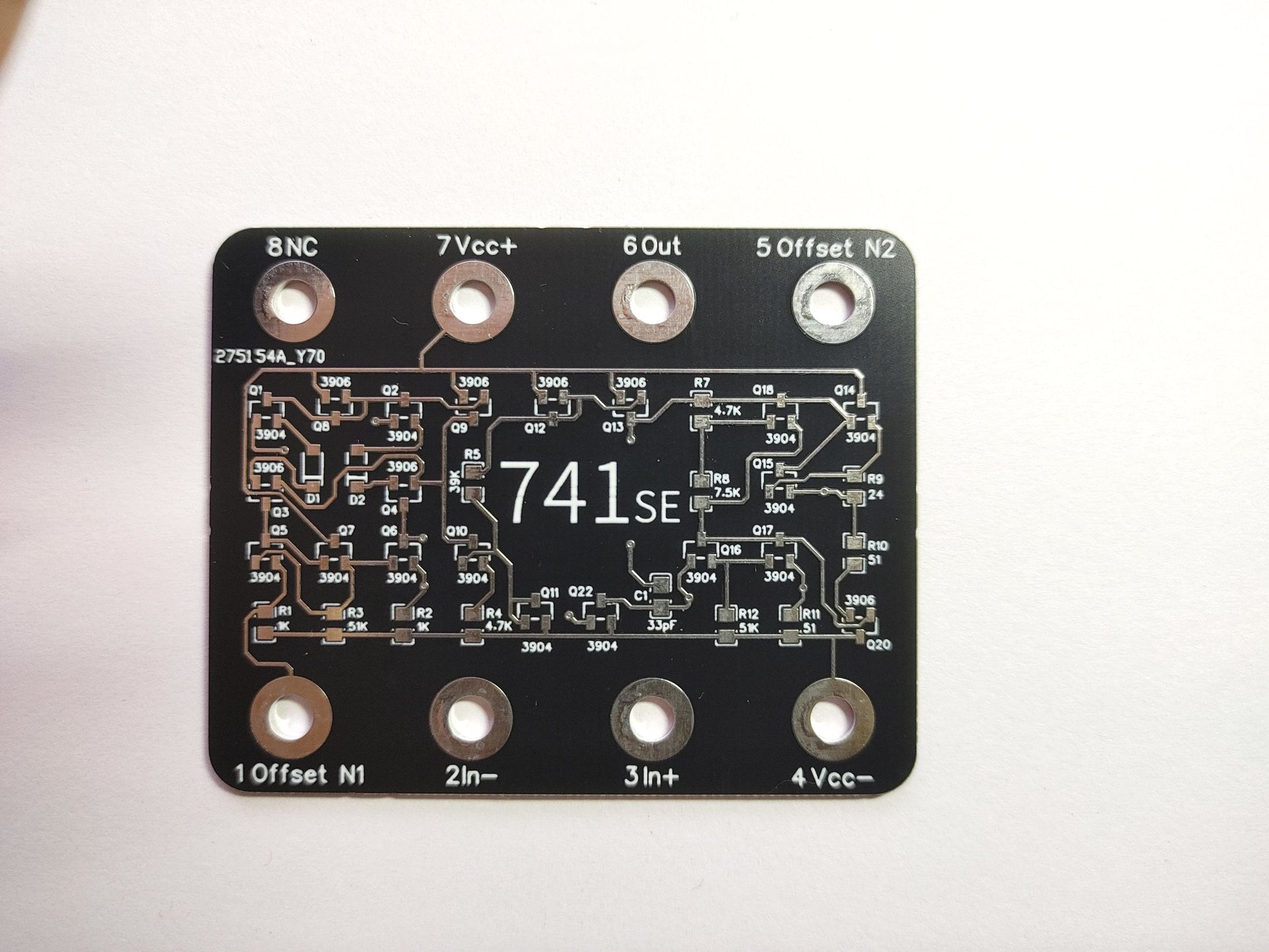

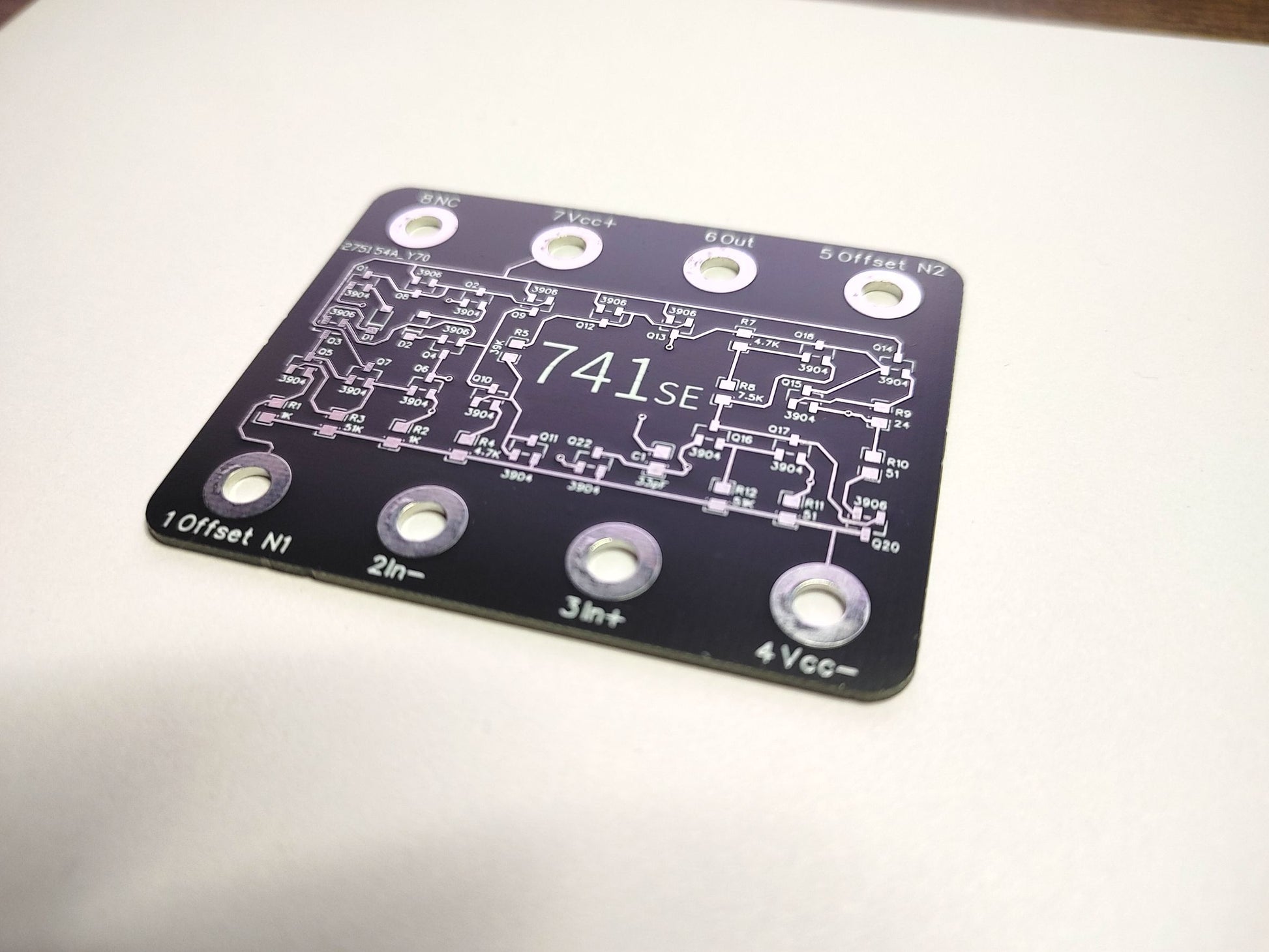

"741SE" Discrete Operational Amplifier is a surface-mount soldering kit that lets you build a faithful and functional transistor-scale replica of the μA741 op-amp integrated circuit, the classic and ubiquitous analog workhorse.
