What is it?
It’s a highly integrated DIY Maker development board built around the advanced ESP32-S3 chip. This board features a 1.8-inch IPS capacitive touch display with a 360×3…
Click to Watch VIdeo
What is it?
It’s a highly integrated DIY Maker development board built around the advanced ESP32-S3 chip. This board features a 1.8-inch IPS capacitive touch display with a 360×360 resolution, robust multimedia capabilities (video, MP3 playback, MJPEG, and photo frame functions), and integrated wireless charging via QI protocol. Designed for both hobbyists and professionals, it combines local edge computing with seamless connectivity to remote large models, making it a powerful tool for AIoT applications. The board’s construction features a pure aluminum alloy CNC frame paired with an IPS screen, ensuring exceptional durability and refined craftsmanship.
Why did you make it?
The motivation behind this project is to empower makers and developers with an open, transparent, and high-performance platform for rapid prototyping. By leveraging the ESP32-S3’s impressive processing power and energy efficiency, the board was created to facilitate innovative AIoT projects that merge local edge computing with remote advanced models. Open documentation—including publicly available schematics (in PDF format)—ensures that the community has full access to design insights, encouraging collaboration, learning, and further evolution of the technology.
What makes it special?
High Performance, Low Power Consumption:
Powered by the dual-core ESP32-S3 chip, the board offers advanced processing for local edge computing tasks while minimizing energy usage.
Extensive Multimedia and Connectivity Capabilities:

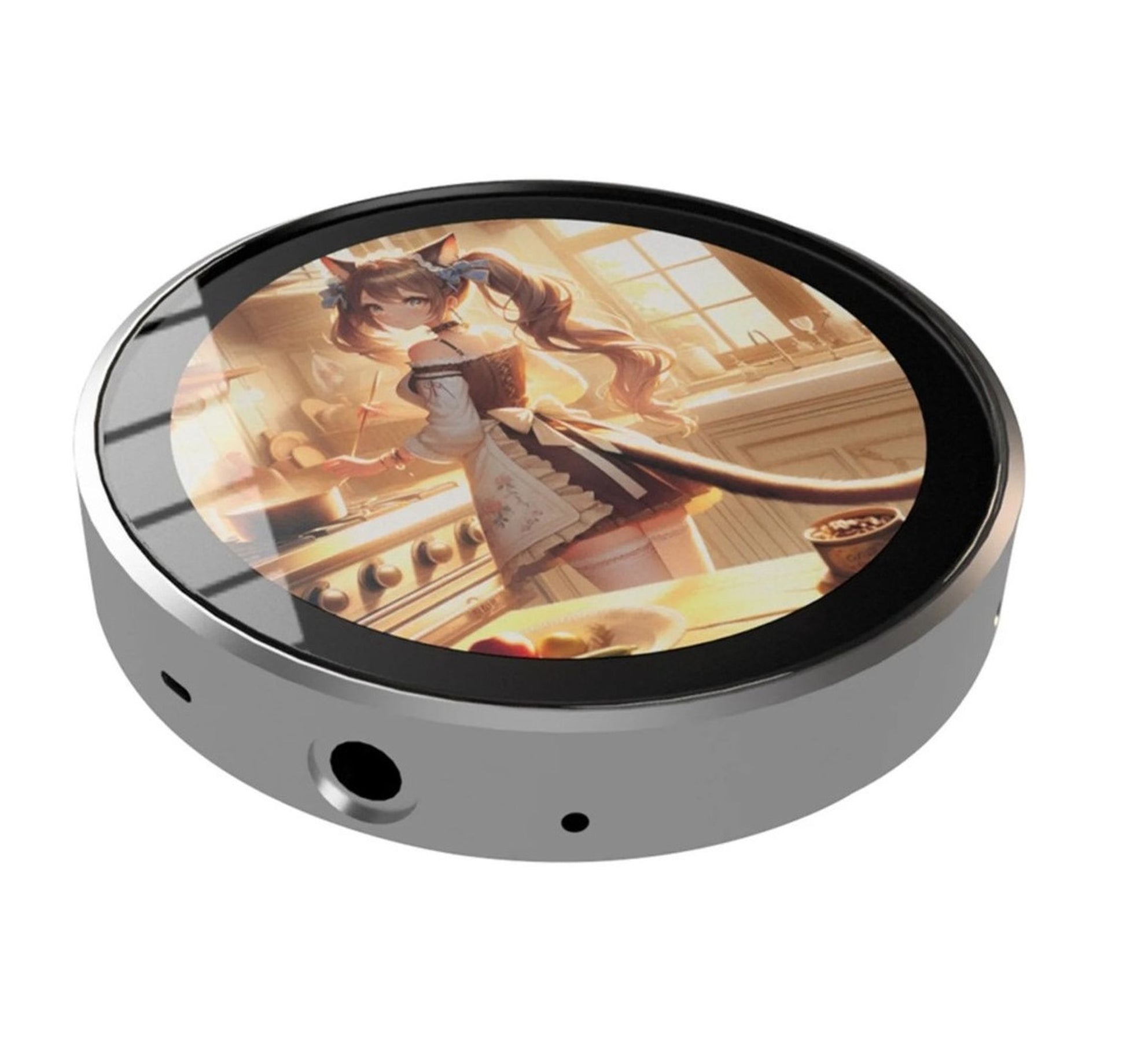

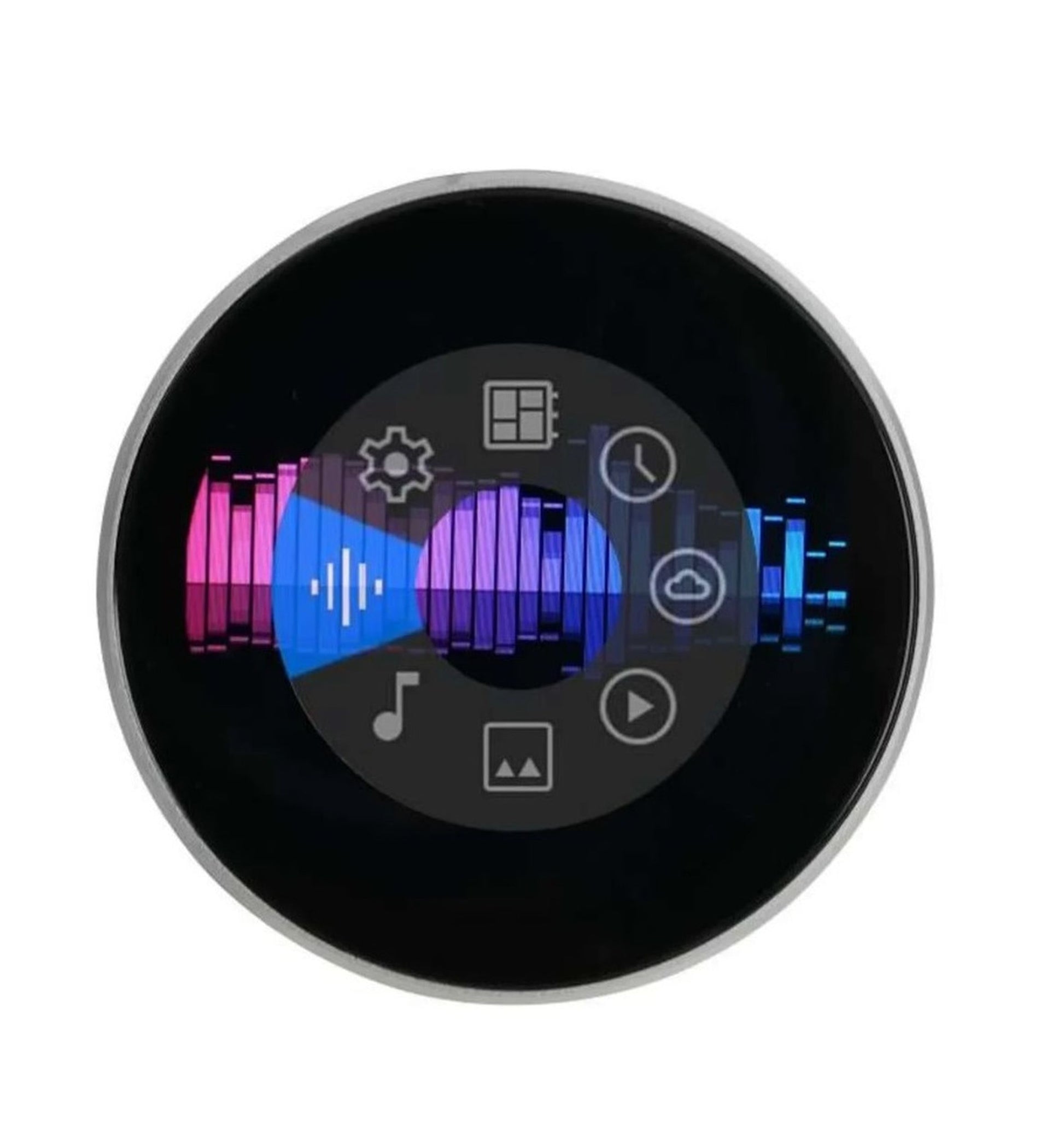

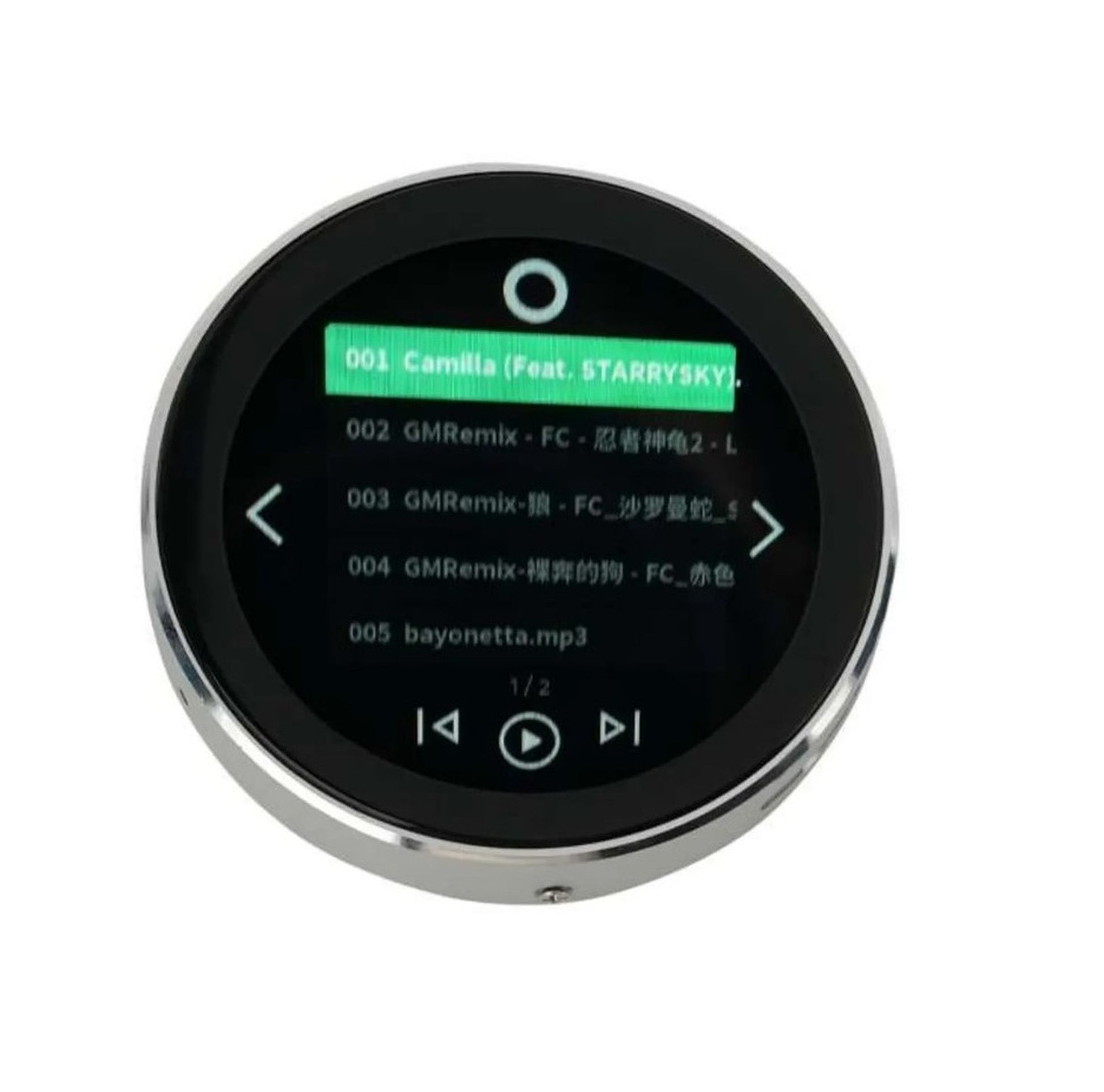

With features such as a secondary display function (AIDA64), MP3 and MJPEG playback, photo frame capabilities, and real-time weather display, it supports a wide range of creative applications. Integrated Wi-Fi and Bluetooth BLE5.0 enable robust connectivity, crucial for modern AIoT solutions.
Premium Craftsmanship:
The board is encased in a pure aluminum alloy CNC-machined body, paired with a crisp IPS capacitive touchscreen, providing not only durability and reliability but also an attractive, professional finish.
Open Documentation:
All design files, including the detailed schematic PDF, are openly shared with the community. This transparency reinforces a maker-friendly approach and allows for modification, customization, and collaborative innovation.
Original product page: https://www.tindie.com/products/johnson/18-inch-ips-capacitive-touch-screen-esp32-s3/
