ESP32-S3 AIoT Basic

ESP32-S3 AIoT Basic

$33.00 USD
$33.00 USD
Sale Sold out
Shipping calculated at checkout.

What is it?

This compact Apple II floppy disk emulator lets an Apple II, Apple II Plus, or Apple IIe load disk images from an SD card instead of relying on aging 5.25-inch floppy disks. It includes the STM32F411 BlackPill controller board and SD card interface needed for the emulator itself.

What's in the box?

Package includes: 1x Apple II floppy disk emulator board assembly, 1x installed STM32F411 / BlackPill controller board, 1x OLED display and four-button interface, 1x prepared SD card / microSD card, and 1x ribbon cable for the Apple II floppy interface. Apple II computer, Disk II controller/interface card, and copyrighted disk images are not included.

Installation

Connect the emulator to the Apple II floppy interface using the included ribbon cable, insert the prepared SD card, then power on and use the OLED screen and four buttons to choose a disk image. Basic Apple II hardware knowledge is recommended.

Warranty

Hardware is tested before shipping whenever stock is available. The product includes a 1-year non-transferable warranty covering manufacturing defects. If compatibility or setup issues occur, contact support before requesting a return.

View full details

Technical details

Description, documents, and source code.

A simplified and more affordable version of our full ESP32-S3 AIoT All-in-One board — perfect for beginners, classrooms, rapid prototy



🔍 What is it?

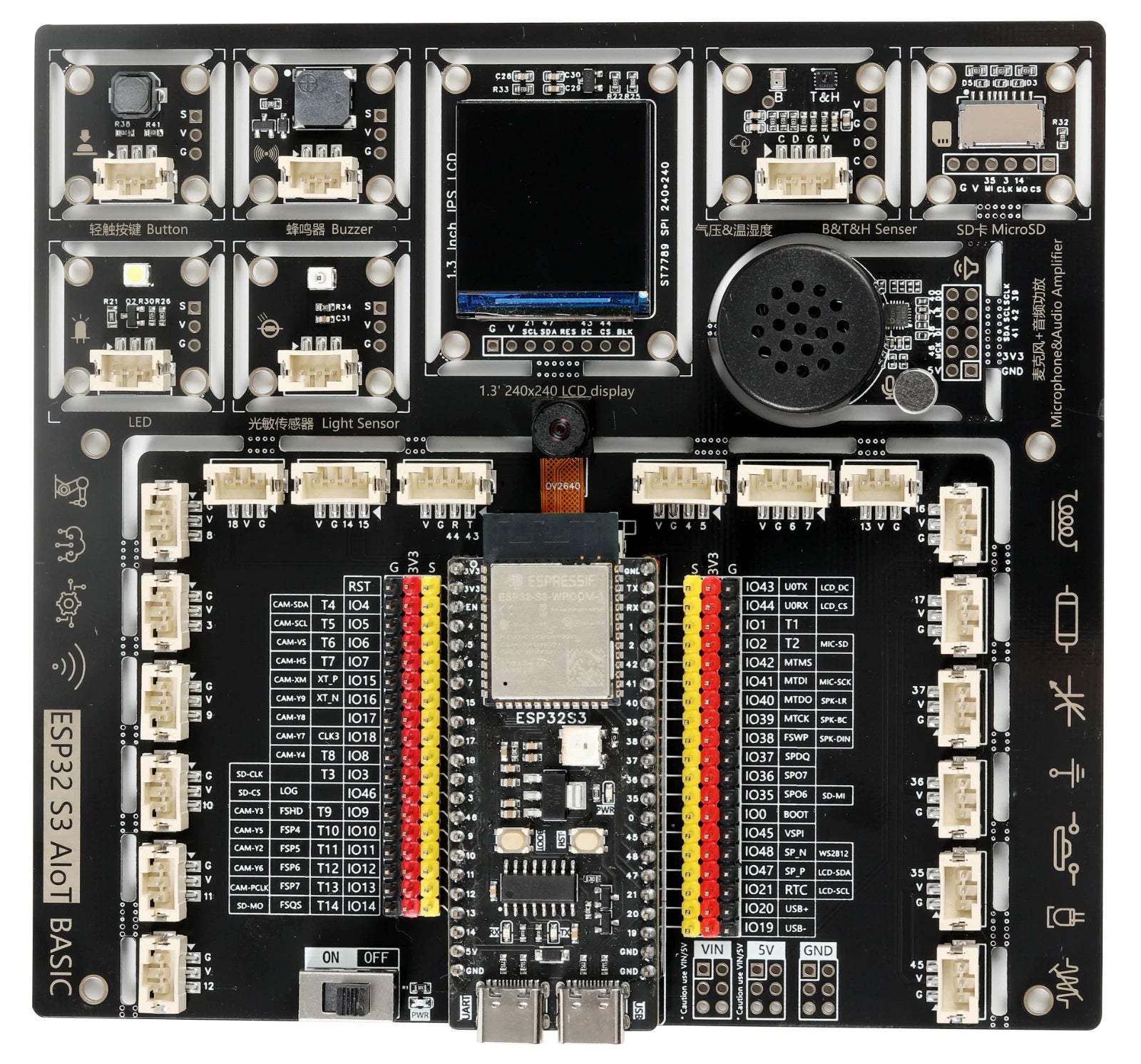

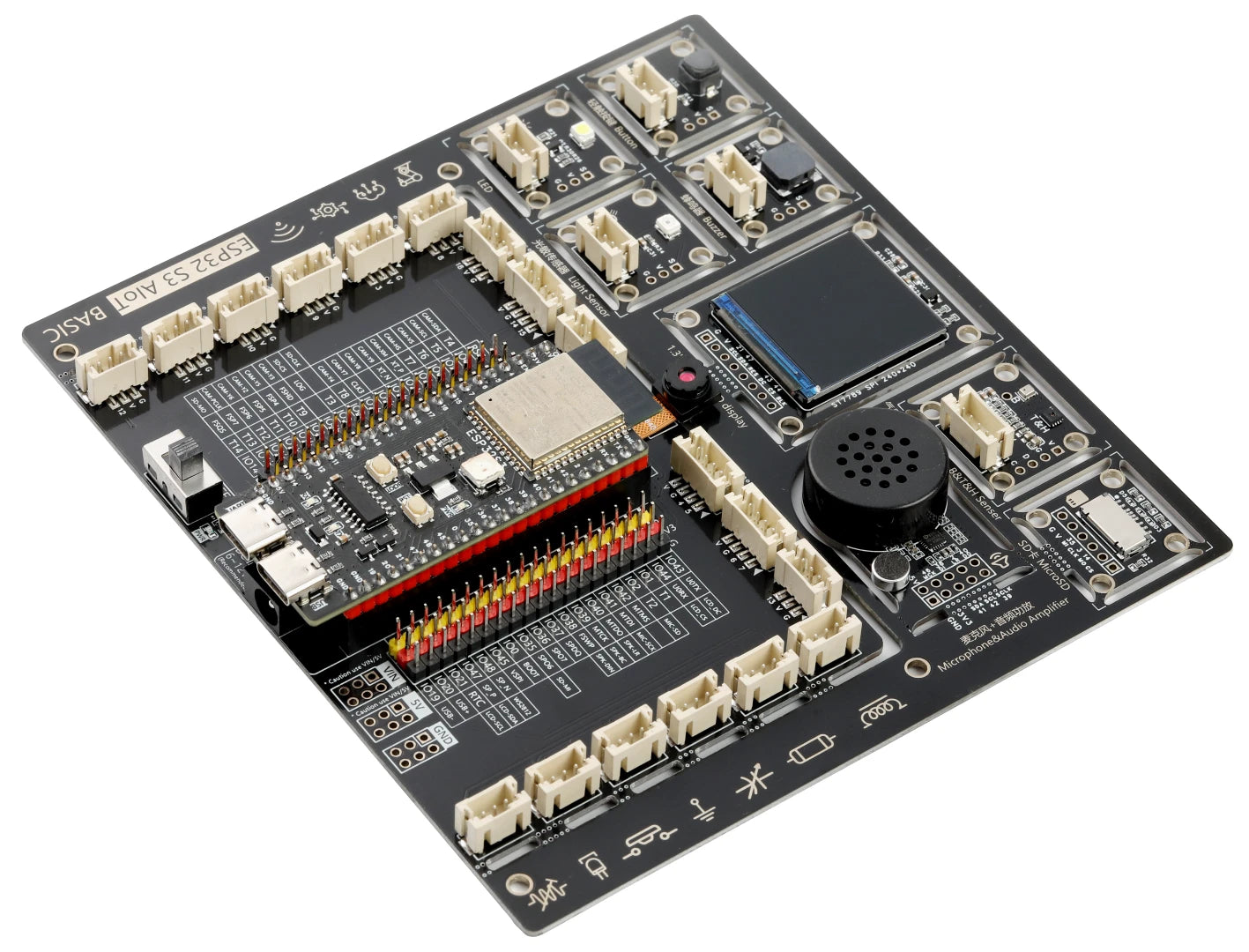

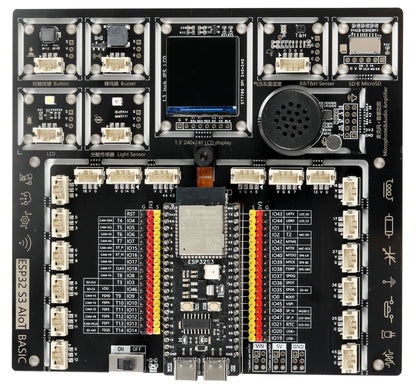

This is an all-in-one ESP32-S3 AIoT learning board that integrates 9 commonly used modules directly on the PCB:

  • Button
  • Buzzer
  • LED indicator
  • Photosensitive (light) sensor
  • LCD display
  • Digital microphone
  • SD card slot
  • Audio amplifier
  • Camera interface

It is designed as a compact, wiring-free development platform where most AI and IoT experiments can be completed without breadboards, jumper wires, or external modules.

The board exposes both pin headers and a Grove expansion port, allowing easy connection to additional sensors or actuators.

💡 Why did you make it?

Many beginners and students struggle with wiring errors, power issues, and module compatibility when learning ESP32 or AIoT development.

We wanted a board that:

  • Works immediately out-of-the-box
  • Has the most essential modules already onboard
  • Is friendly for teaching, workshops, and fast prototyping
  • Makes AI/IoT learning easier, cleaner, and more enjoyable

So we created a Basic Edition of our AIoT kit — simpler, lighter, and more accessible, while still covering the full learning path of ESP32-S3 AI + IoT.

⭐ What makes it special?

  • 9 modules + ESP32-S3 controller integrated on one PCB
    No external wiring required for most AI/IoT demos.

  • Direct on-board routing for AI application modules
    Camera, audio, LCD, sensors — already connected internally.

  • Compatible with XiaoZhi / AI teaching demos
    Great for STEM courses and AI curriculum.

  • Dual expansion options

  • Standard pin headers

  • Grove connector for plug-and-play modules

  • Supports multiple development environments

  • Arduino IDE
  • ESP-IDF

  • Aily Blockly / graphical programming

  • External power input (6–12V)
    Enough power for motors or additional IoT devices.

  • Comes with tutorials and sample projects
    Suitable for complete beginners or fast prototyping.

📐 Product Specifications

  • Integrated modules: 9
  • Main controller: ESP32-S3 core board
  • Interfaces: Pin header + Grove interface
  • Operating voltage: 3.3V
  • External power (recommended): 6–12V
  • PCB size: 145 × 135 mm
  • Mounting hole diameter: 3 mm

📦 Package Includes

  • 1 × ESP32-S3 AIoT Basic all-in-one mainboard
  • (Optional) Documentation, code samples, tutorials (online link provided)

https://arduino.me/s/55?aid=3218
