Sinclair ZX80 Rev 2 Motherboard PCB

Sinclair ZX80 Rev 2 Motherboard PCB

$12.00 USD
$12.00 USD
Sale Sold out
Shipping calculated at checkout.

What is it?

System Alpha is a direct replacement combo CPU/Driver PCB for Williams System 3-7 pinball machines (1977-1984). It removes common failure points and improves long-term reliability.

What's in the box?

1x System Alpha main PCB. Optional: System 7 Add-on PCB kit for selected System 7 games.

Installation

Plug-and-play replacement: no rewiring or soldering required for standard install. Load ROM files by USB, then install and run setup from coin door service switches.

Warranty

1-year non-transferable warranty covering manufacturing defects. If compatibility or setup issues occur, contact support before return.

View full details

Technical details

Description, documents, and source code.

ZX80 revision 2 PCB.

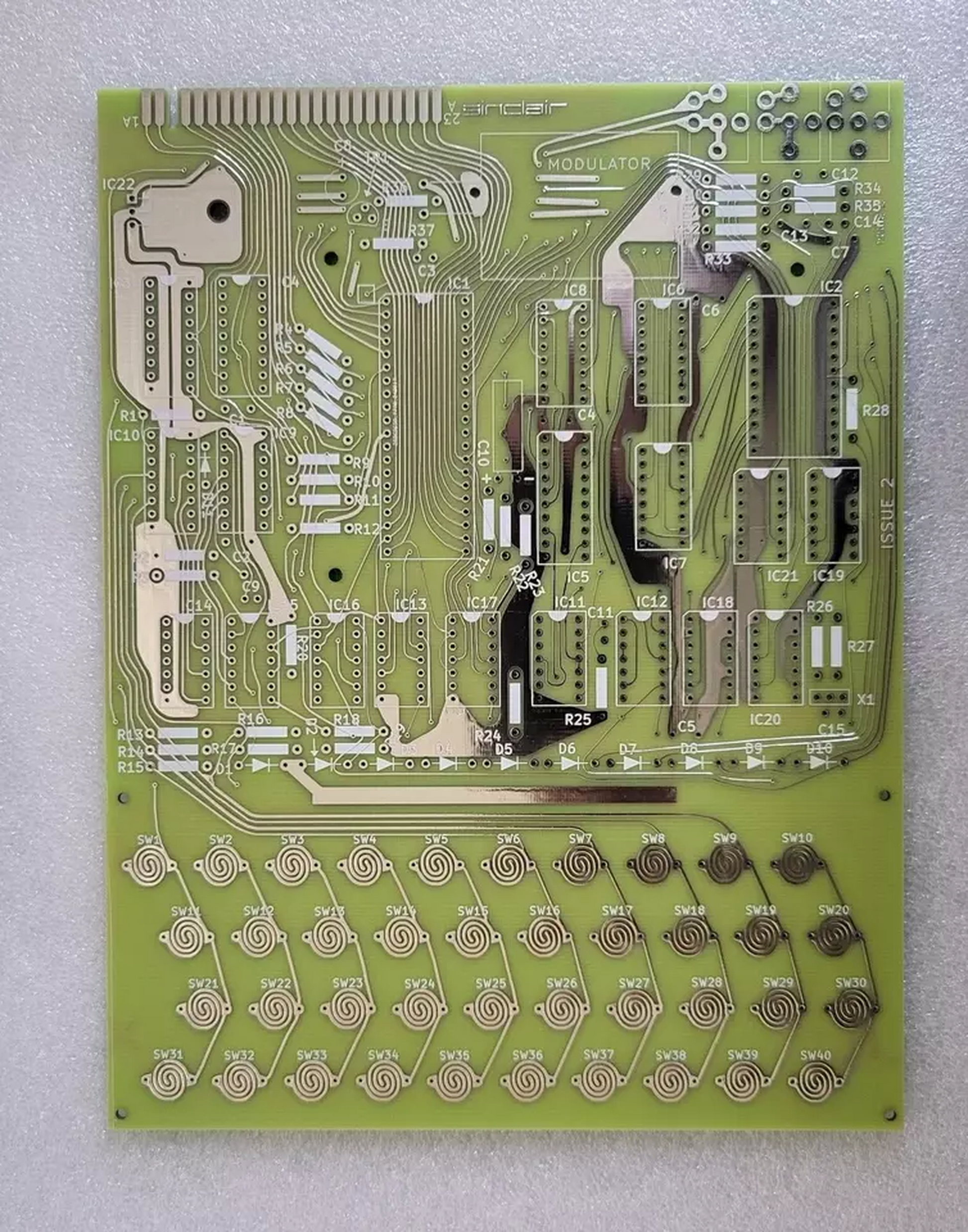

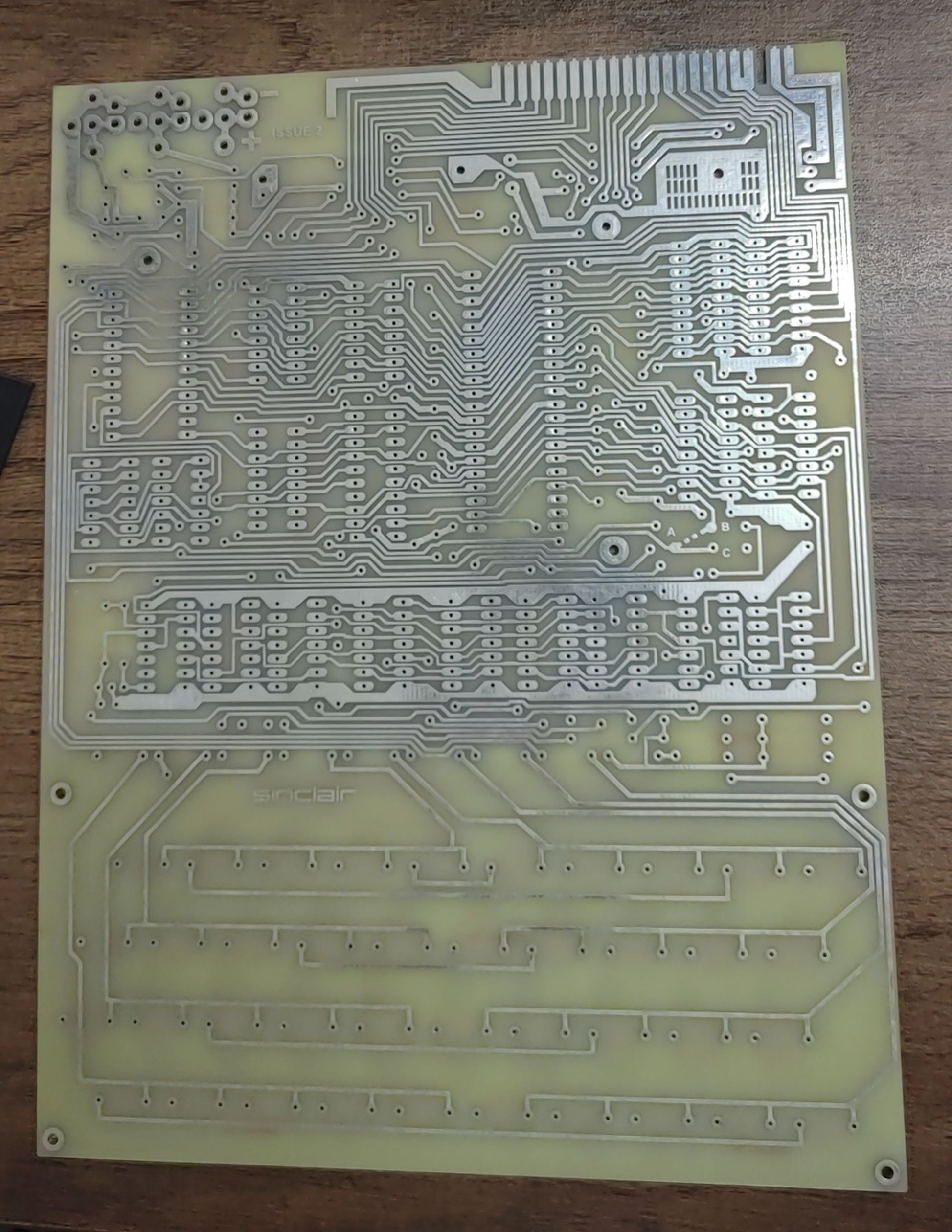

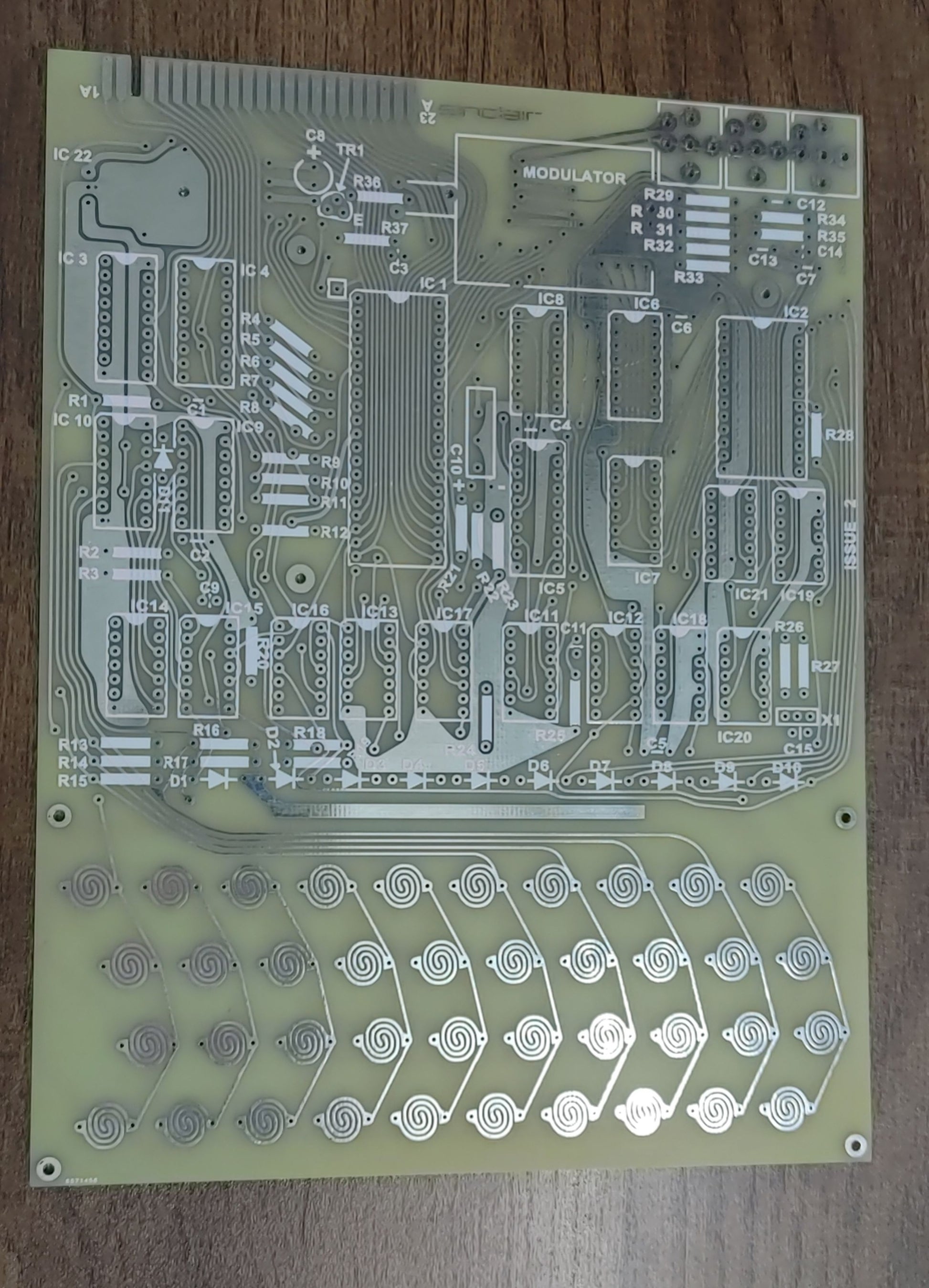

This is a blank ZX80 revision 2 PCB which I have reversed engineer from the original Sinclair design, keeping the same component layout, curved tracks and silkscreen.

Let me kn…

ZX80 revision 2 PCB.

This is a blank ZX80 revision 2 PCB which I have reversed engineer from the original Sinclair design, keeping the same component layout, curved tracks and silkscreen.

Let me know if you want a copy of the BOM.

I have built this and it works perfectly. See the last photo for an example of the display output.

Note: The photo of the fully assembled PCB is for reference only and what it will look like when populated.

You will only be receiving a blank PCB and will need to source and solder in all components yourself.

Please contact me if you have any queries and I will be only too happy to answer them.

Please check out my other items for sale.

Original product page: https://www.tindie.com/products/johnson/sinclair-zx80-rev-2-motherboard-mainboard-pcb/
